Automatic Film Coater with Vacuum Plate for Battery Electrode Coating

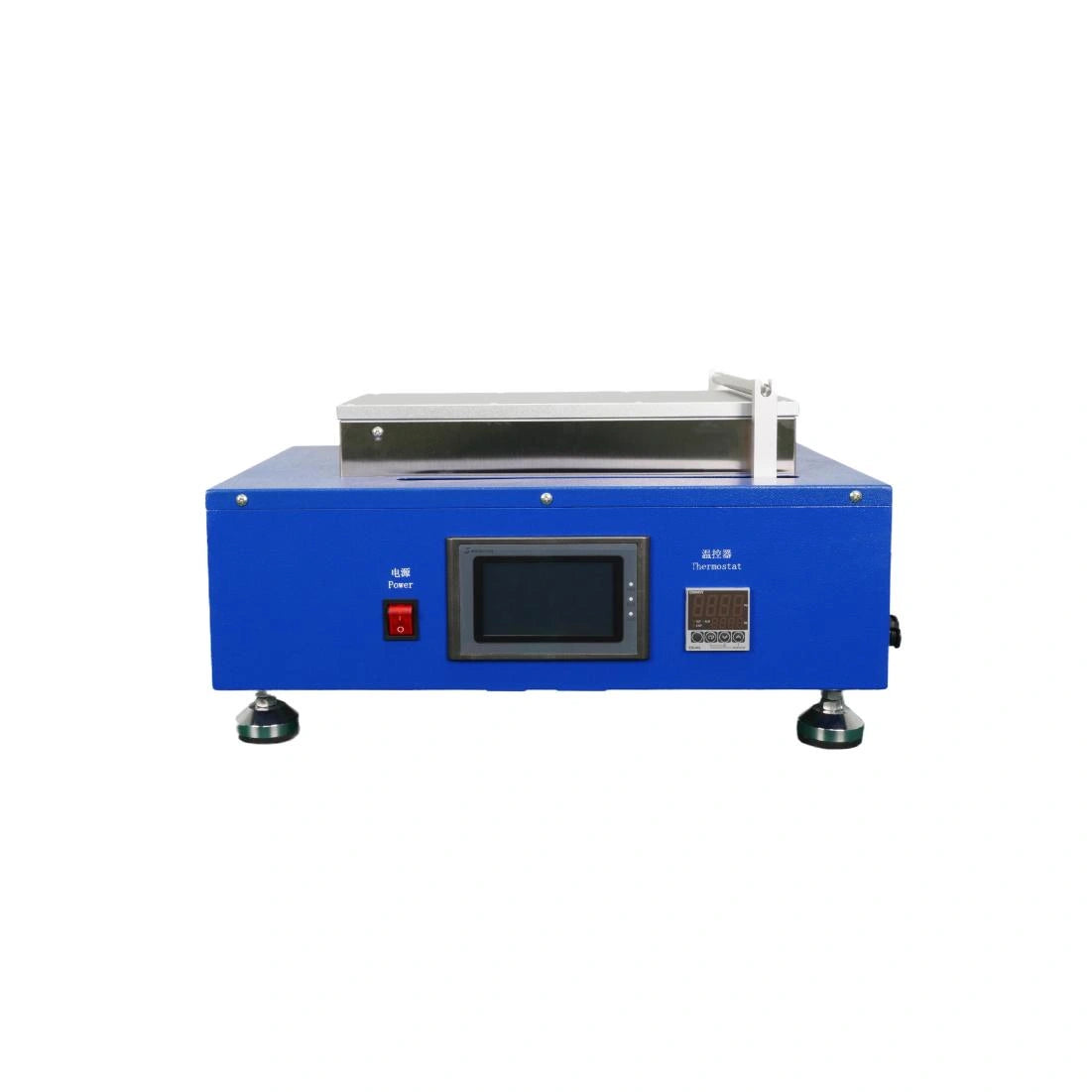

The FL-TM300 is a benchtop automatic film coater for battery electrode coating and laboratory thin-film research. A motor-driven doctor blade spreads slurry over a substrate held on an aluminum vacuum plate. The system provides up to 300 mm of coating travel and includes a 100 mm adjustable film applicator and an oil-free vacuum pump.

Key Features

• Adjustable coating speed and travel for laboratory slurry-coating trials.
• Vacuum substrate holding for convenient placement and removal of compatible sheets.
• Micrometer-adjustable doctor blade with 10 μm scale graduations and a 0–3.5 mm gap range.
• Standard 100 mm applicator; custom coating widths up to 150 mm can be discussed when requesting a quote.
• Compact benchtop format for battery materials and thin-film research.

Technical Specifications

The 300 mm dimension refers to coating travel, not coating width. Blade gap and scale graduation are mechanical settings; they are not guaranteed wet-film or dry-film thickness. Final film thickness depends on slurry properties, substrate, coating conditions and drying.

Standard Configuration

• FL-TM300 automatic film coater with aluminum vacuum plate
• 100 mm adjustable doctor blade film applicator
• Oil-free vacuum pump

Battery Electrode Coating Workflow

Use the FL-TM300 for laboratory electrode slurry coating, ceramic-film studies and other compatible thin-film research. Prepare slurry with our 500 mL planetary vacuum mixer. After coating and suitable drying, use a manual lab rolling press for electrode calendering where required by your process. Explore related cell making equipment and tools for subsequent preparation steps.

Request a Quote

Send your substrate dimensions, desired coating width, slurry application, required quantity and destination country. Confirm the listed 220 V / 50 Hz power supply for your laboratory. We will reply by email with configuration details and a quotation.
