Copper Foam Electrode Substrate for Battery and Supercapacitor Applications

$49.00 USD

Sale Sold out

Shipping calculated at checkout.

SKU:LA019-5

Purchase Orders Accepted
DDP Delivery: 7-10 Business Days
30-day Return & Refund Policy

Product Description

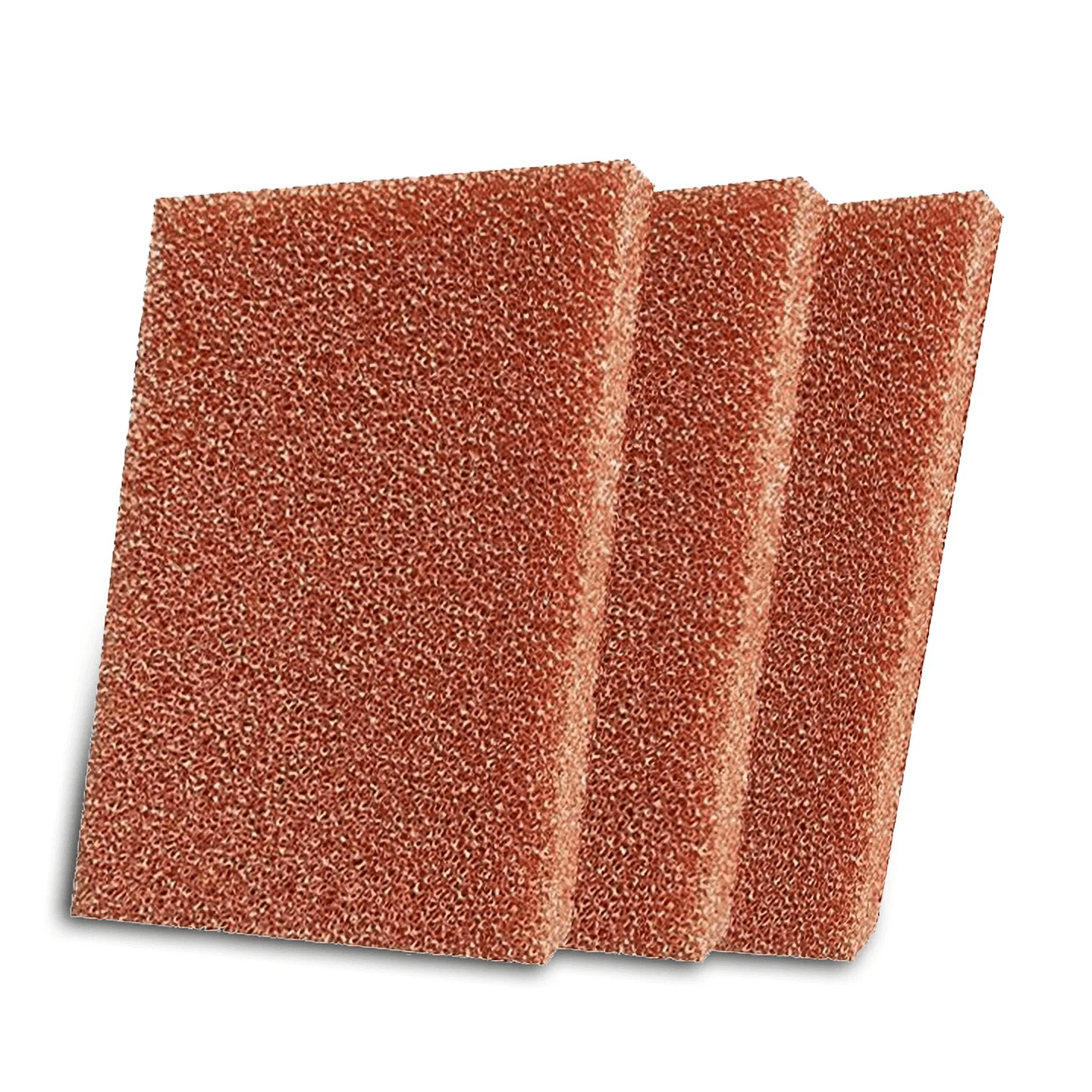

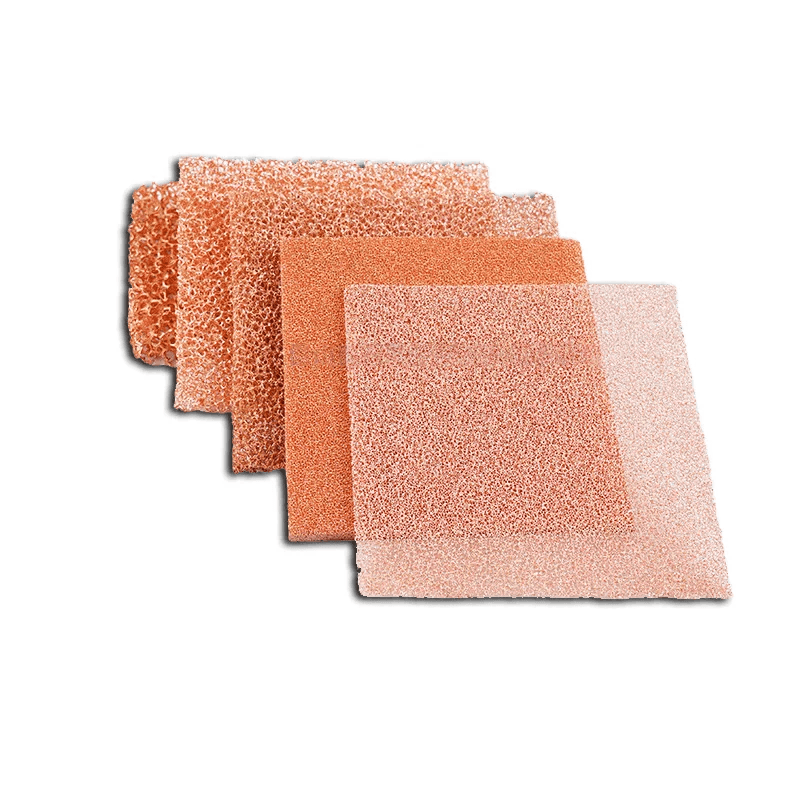

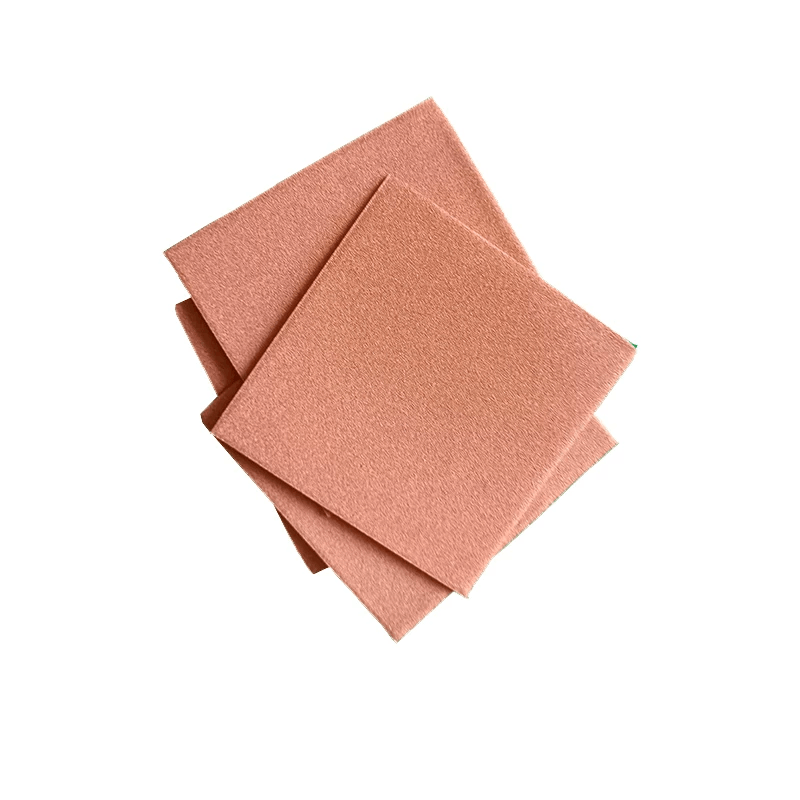

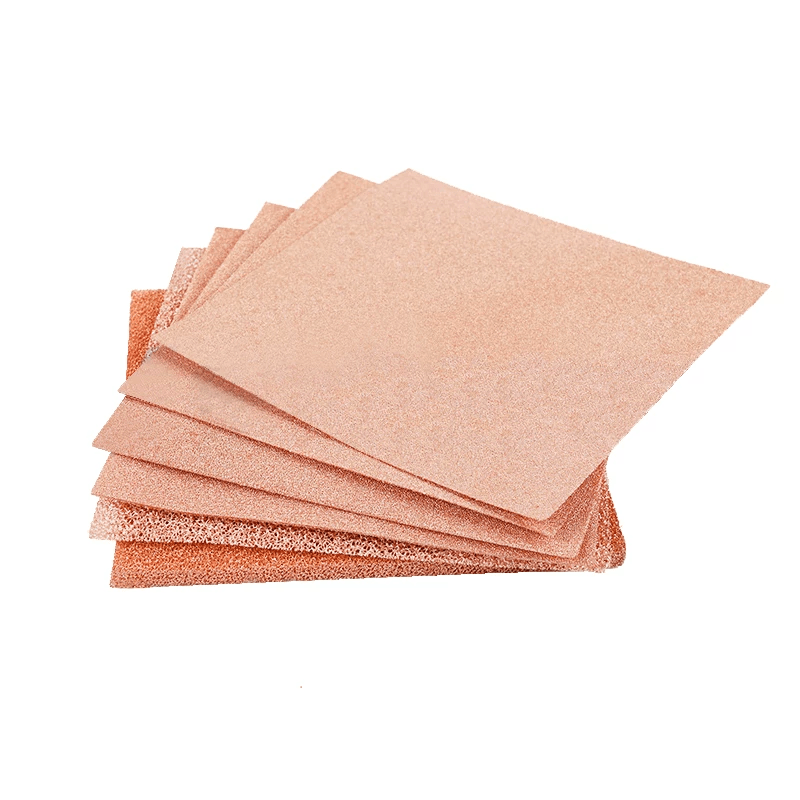

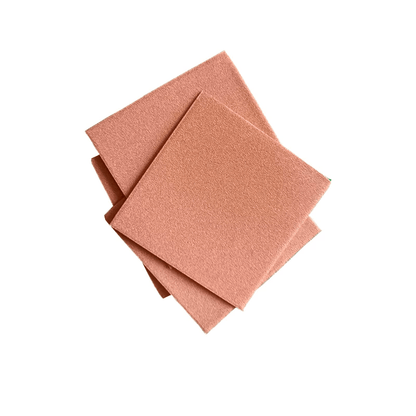

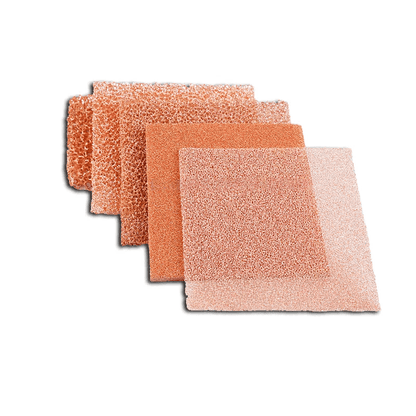

Copper foam is a highly porous conductive material widely used as an electrode substrate in battery and supercapacitor research. Its three-dimensional network structure provides a large surface area, enabling efficient electron transport and enhanced electrochemical performance.

This material is particularly suitable for applications requiring high conductivity and structural support, such as lithium-ion batteries, zinc-based batteries, and supercapacitors.

With uniform pore distribution and excellent mechanical stability, copper foam supports active material loading and improves overall electrode efficiency in laboratory research environments.

Specifications

Parameter	Specification
Material	Copper (Cu)
Purity	≥99.9%
Structure	3D Porous Foam
Porosity	90–98%
Pore Density	5–130 PPI (pores per inch)
Thickness	0.1 – 20 mm
Conductivity	High-conductivity copper structure
