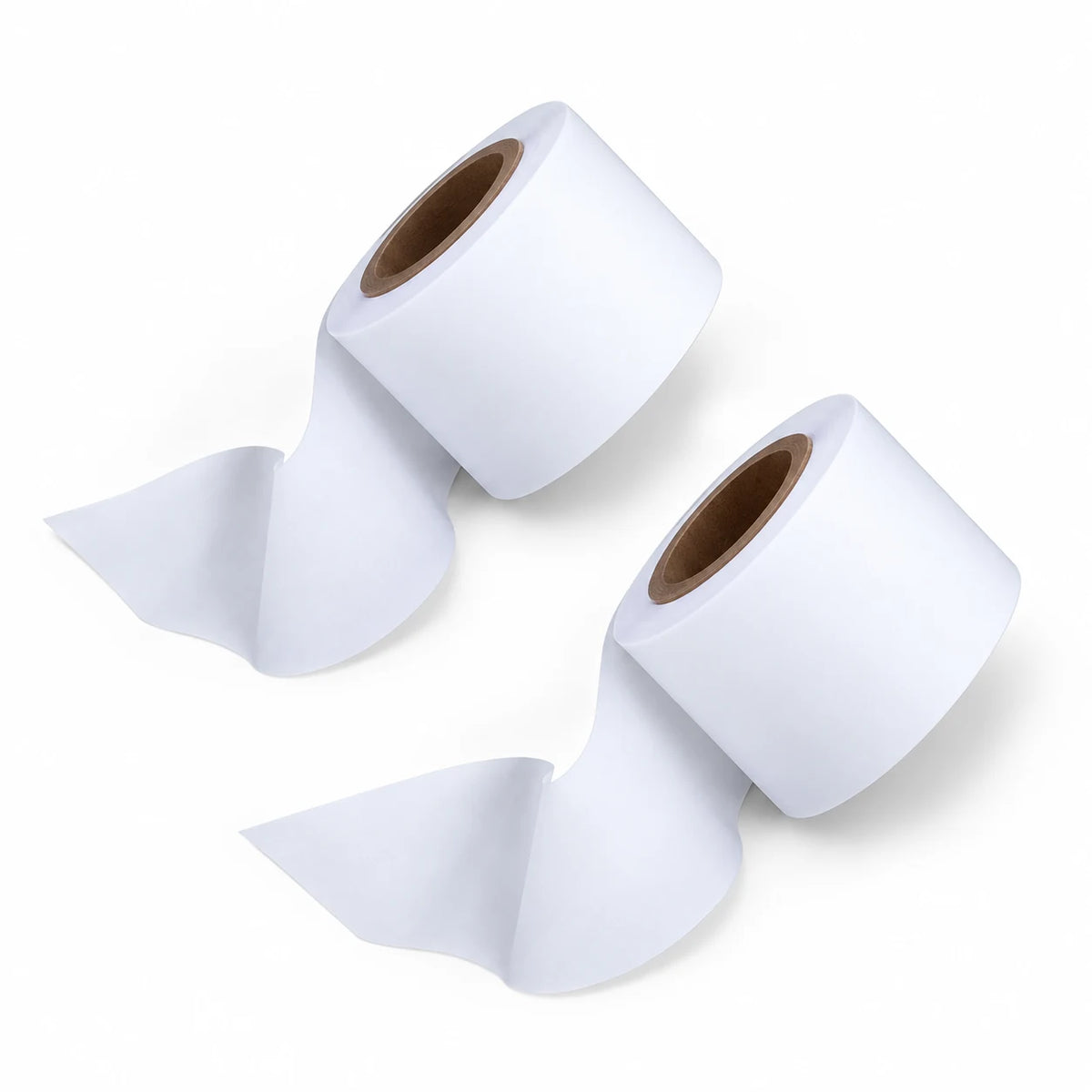

• 2320 and 2325 PP PE PP trilayer battery separator roll pair

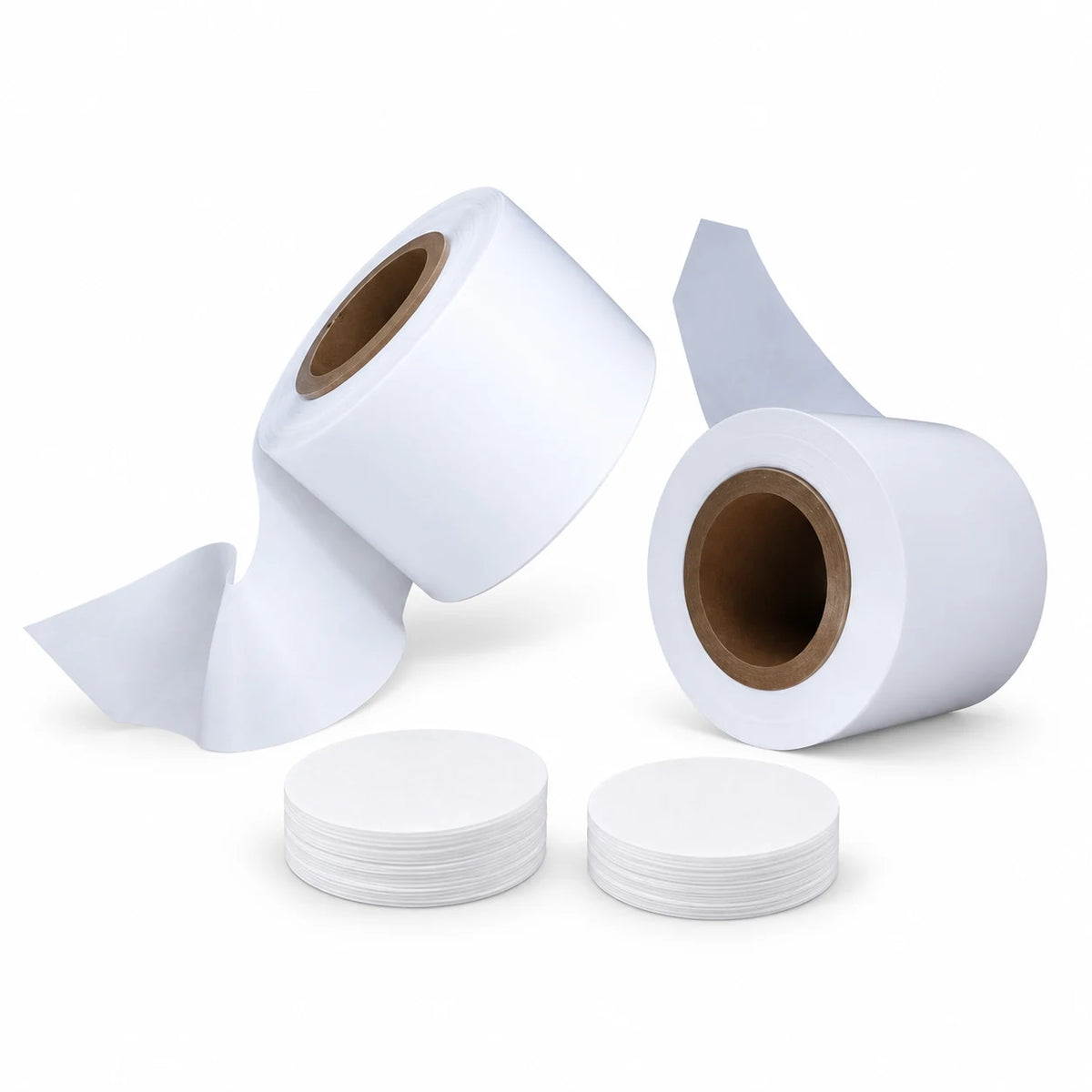

  • 2320 and 2325 trilayer battery separator comparison bundle with rolls and 18 mm discs
1 2

Flux Battery Hub

Dry-Process PP Battery Separator Film 16μm / 20μm / 25μm

Dry-Process PP Battery Separator Film 16μm / 20μm / 25μm

$49.90 USD
$49.90 USD
Sale Sold out
Shipping calculated at checkout.

PP16-10

Thickness
Roll Length
  • Formal Quotes & POs
  • DDP to Most Destinations
  • Return Policy Available

Quick Answer

Dry-process PP separator film is a porous polypropylene membrane used to physically separate positive and negative electrodes while allowing ionic transport through the electrolyte in battery cells. This product is available in 16μm, 20μm, and 25μm thicknesses with a standard width of 60mm.

Description

Dry-process polypropylene (PP) separator film is designed for laboratory battery research and cell assembly. The porous PP membrane provides physical separation between the positive and negative electrodes while maintaining the ion-transport pathway required for electrochemical operation.

Three thickness options are available: 16μm, 20μm, and 25μm, all supplied at a standard width of 60mm. The different grades provide different basis weights, porosities, air permeability values, mechanical strengths, and puncture resistance, allowing researchers to select the separator according to their experimental requirements.

Standard roll lengths include 10m, 20m, and 100m.

Features

  • Dry-process polypropylene separator structure
  • 16μm / 20μm / 25μm thickness options
  • Standard 60mm roll width
  • Porosity around 40–41%
  • Controlled air permeability
  • Low thermal shrinkage
  • Defined MD / TD tensile strength
  • Puncture strength up to 429g
  • Melting temperature of approximately 167°C
  • Multiple roll lengths available

Specifications

Parameter PP16 PP20 PP25
Material PP PP PP
Base Film Thickness 16μm 20μm 25μm
Total Thickness 16μm 20μm 25μm
Width 60mm 60mm 60mm
Basis Weight 8.75 g/m² 11.5 g/m² 13.6 g/m²
Porosity 41% 40% 40%
Air Permeability 210 s 355 s 349 s
MD Thermal Shrinkage 1.6% 1.1% 1.8%
TD Thermal Shrinkage 0% 0.1% 0.1%
MD Tensile Strength 140Kg/cm2 158Kg/cm2 172Kg/cm2
TD Tensile Strength 17Kg/cm2 20Kg/cm2 20Kg/cm2
Puncture Strength 380g 414g 429g
Melting Temperature 167°C 167°C 167°C
View full details

Request a Lab Quote

For institutional purchase orders, non-standard configurations, larger quantities or written shipping terms, send the details below. We will reply before anything is ordered.

Product: Dry-Process PP Battery Separator Film 16μm / 20μm / 25μm
SKU: PP16-10

Submitting this form does not place an order or confirm availability, pricing or delivery. DDP shipping is included for most destinations we serve. Remote, restricted or unsupported destinations may require different terms, which we will confirm before fulfillment.
