GF/A & GF/F 90 mm Glass Fiber Membrane Comparison Bundle
GF/A & GF/F 90 mm Glass Fiber Membrane Comparison Bundle
SKU:LA083
Couldn't load pickup availability
- Formal Quotes & POs
- DDP to Most Destinations
- Return Policy Available
Product Overview

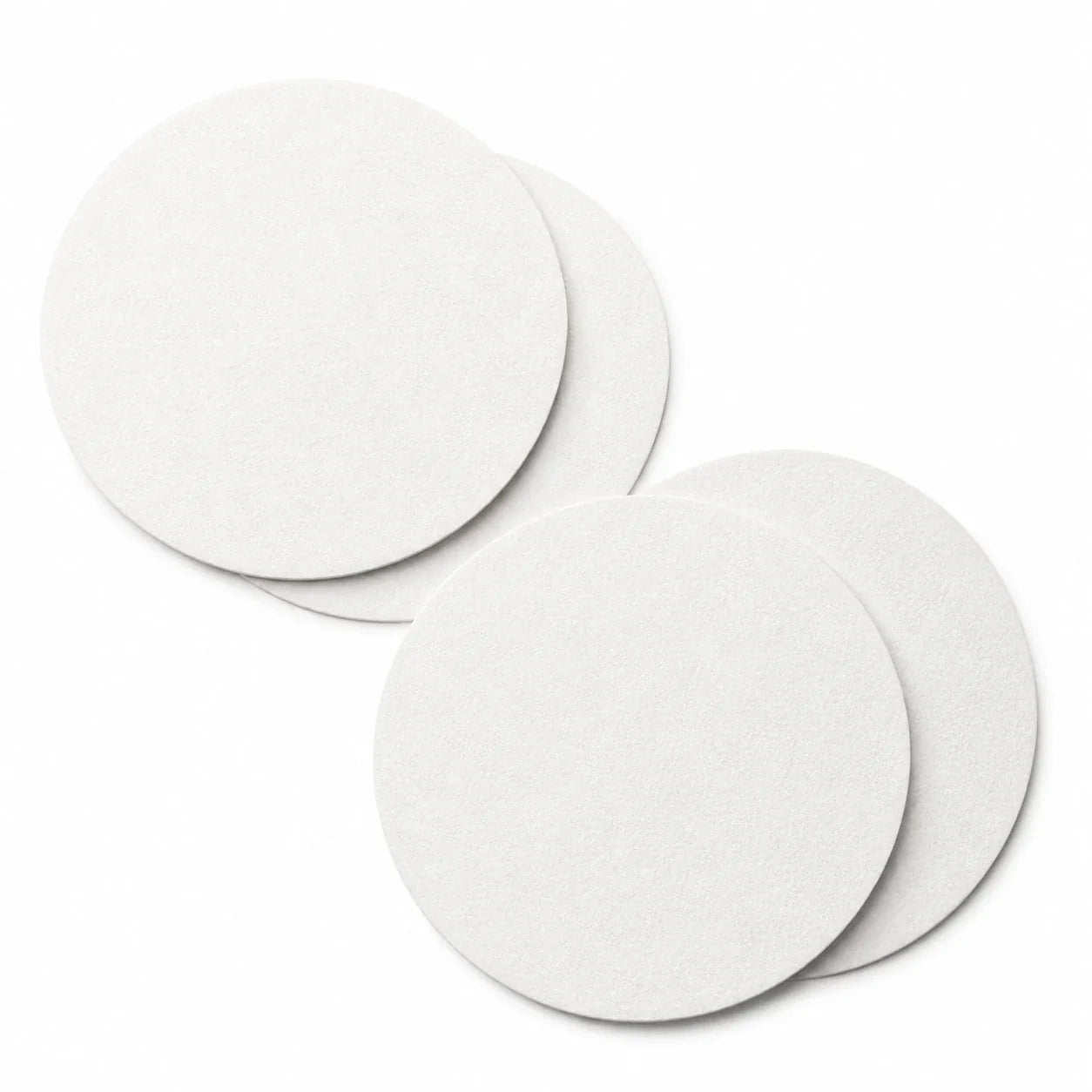

Compare two binder-free glass microfiber membrane grades in one 90 mm bundle. The identical disc diameter makes it easier to evaluate how retention, thickness, basis weight, and flow differ between GF/A and GF/F in battery research, filtration, and sample-preparation workflows.
Bundle Includes
| Specification | GF/A | GF/F |
|---|---|---|
| Diameter | 90 mm | 90 mm |
| Pack quantity | 100 pcs | 25 pcs |
| Typical liquid particle retention | 1.6 μm | 0.7 μm |
| Thickness | 260 μm | 420 μm |
| Basis weight | 53 g/m² | 75 g/m² |
| Typical water flow rate | 143 mL/min | 41 mL/min |
Included packs: GF/A 90 mm, 100 pieces (LA038-8) and GF/F 90 mm, 25 pieces (LA042).
Typical Applications
- GF/A and GF/F grade comparison
- Battery separator and electrolyte-wetting evaluation
- Laboratory filtration and sample preparation
- Particle-retention and flow-rate screening
Selection and Handling Notes
Confirm electrolyte and chemical compatibility, temperature limits, cell design, and the intended test method before use. Handle the membranes with clean, dry tweezers and store them sealed in a clean, dry environment.
For laboratory research use only. Listed values are reference data and may vary by batch.
