Flux Battery Hub

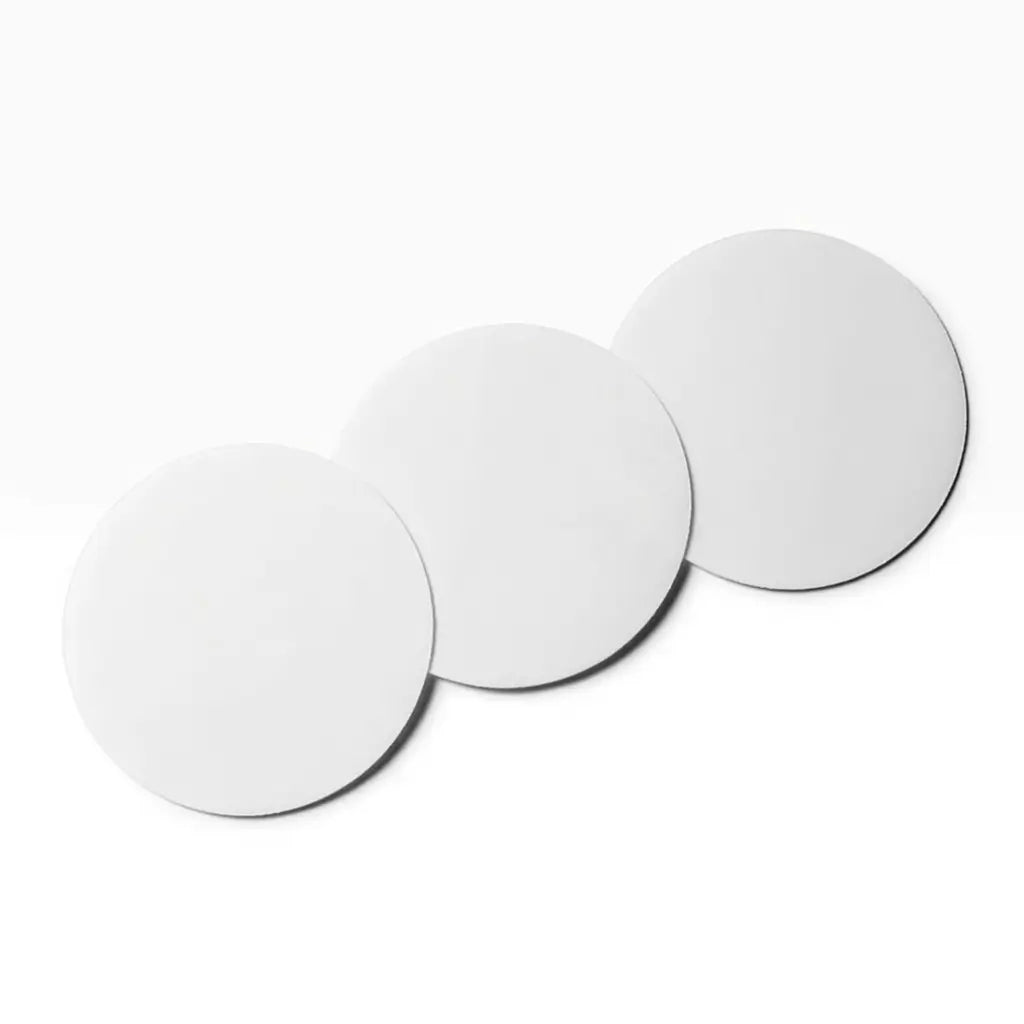

GF/D Glass Fiber Membrane for Battery Research

GF/D Glass Fiber Membrane for Battery Research

$129.00 USD
$129.00 USD
Sale Sold out
Shipping calculated at checkout.

LA041-1

Option
  • Formal Quotes & POs
  • DDP to Most Destinations
  • Return Policy Available

Description

GF/D glass fiber membrane is designed for fast filtration and high-load laboratory workflows. The page states that it has ultra-high mechanical strength and excellent liquid absorption performance, and it is often used as a separator in lithium-ion batteries to improve rate performance. It is also listed for sodium, potassium, and zinc battery systems, plus some lithium-ion button cell systems.

Features

  • Binder-free structure with fast flow rate.
  • Higher filtration speed than cotton fiber filter paper.
  • Very high load capacity for pre-filtration use.
  • Excellent liquid absorption and mechanical strength.
  • Suitable for battery separator applications and electrolyte retention.

Specifications


 Liquid Particle Retention Size (μm) Permeability (s/100 mL/in²) Thickness (μm) Basis Weight (g/m²) Max Temp (°C) Flow Rate (mL/min)
GF/A 1.6 4.3 260 53 550 143
GF/B 1.0 12 675 143 550 81
GF/C 1.2 6.7 260 53 550 105
GF/D 2.7 2.6 675 121 550 681
GF/F 0.7 19 420 75 550 41
