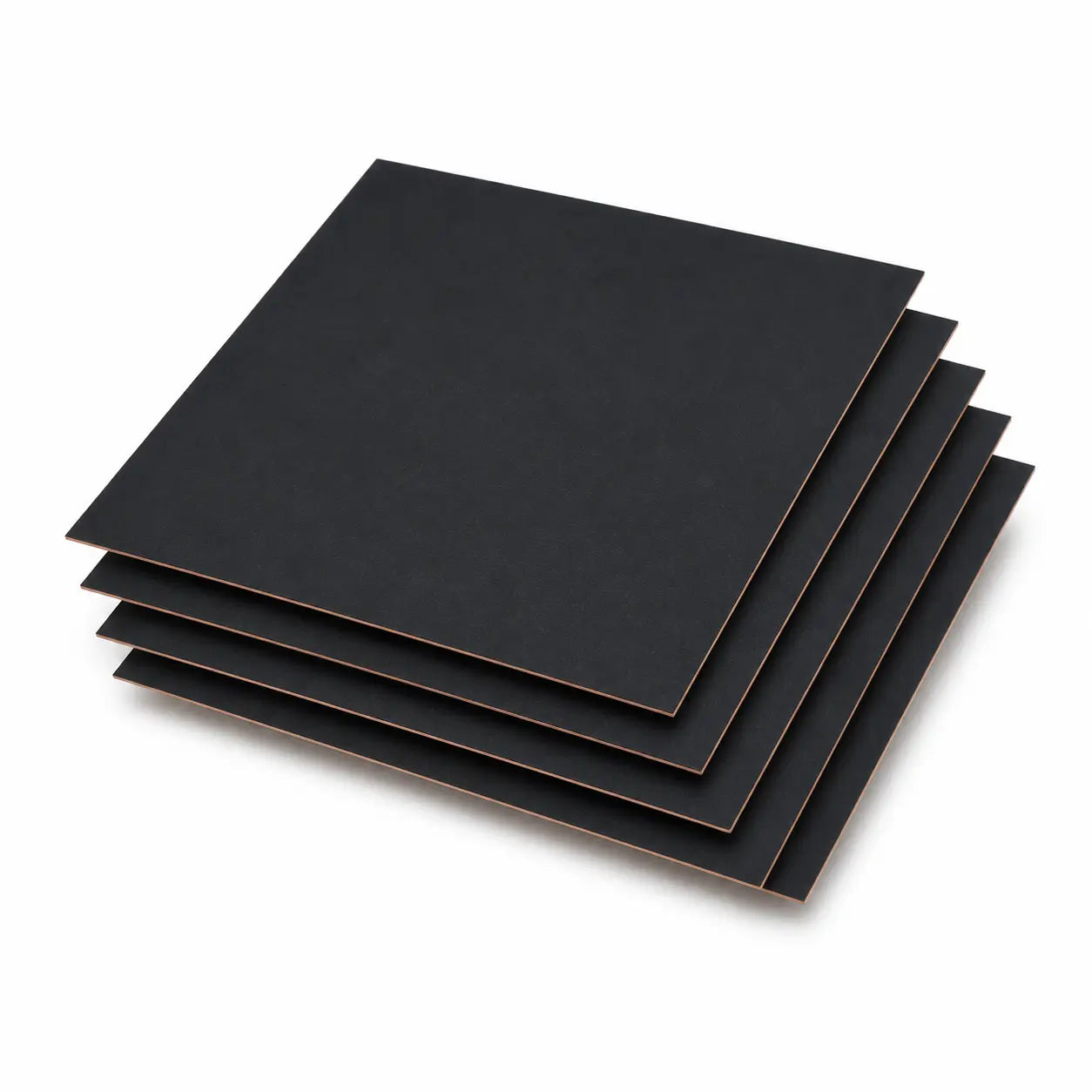

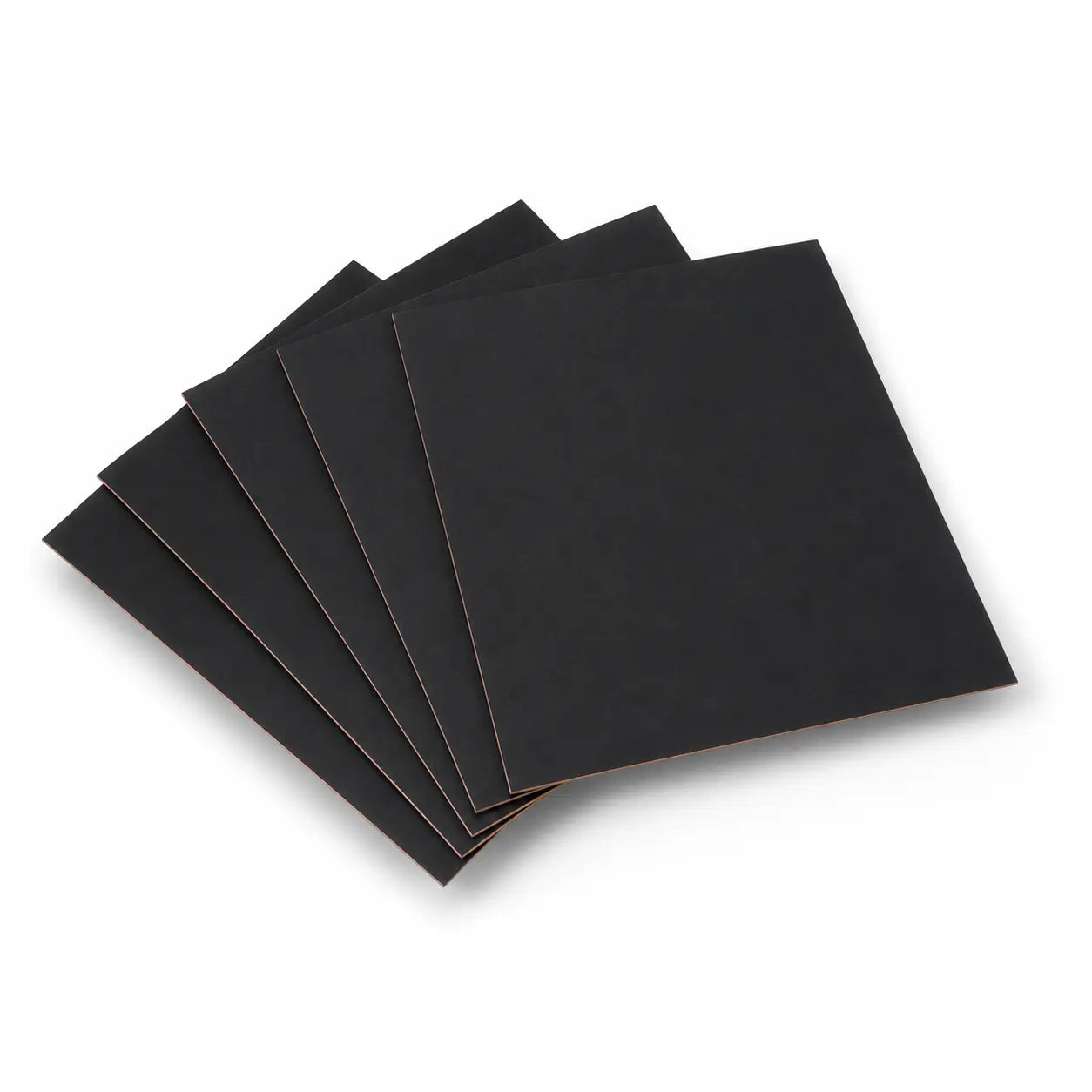

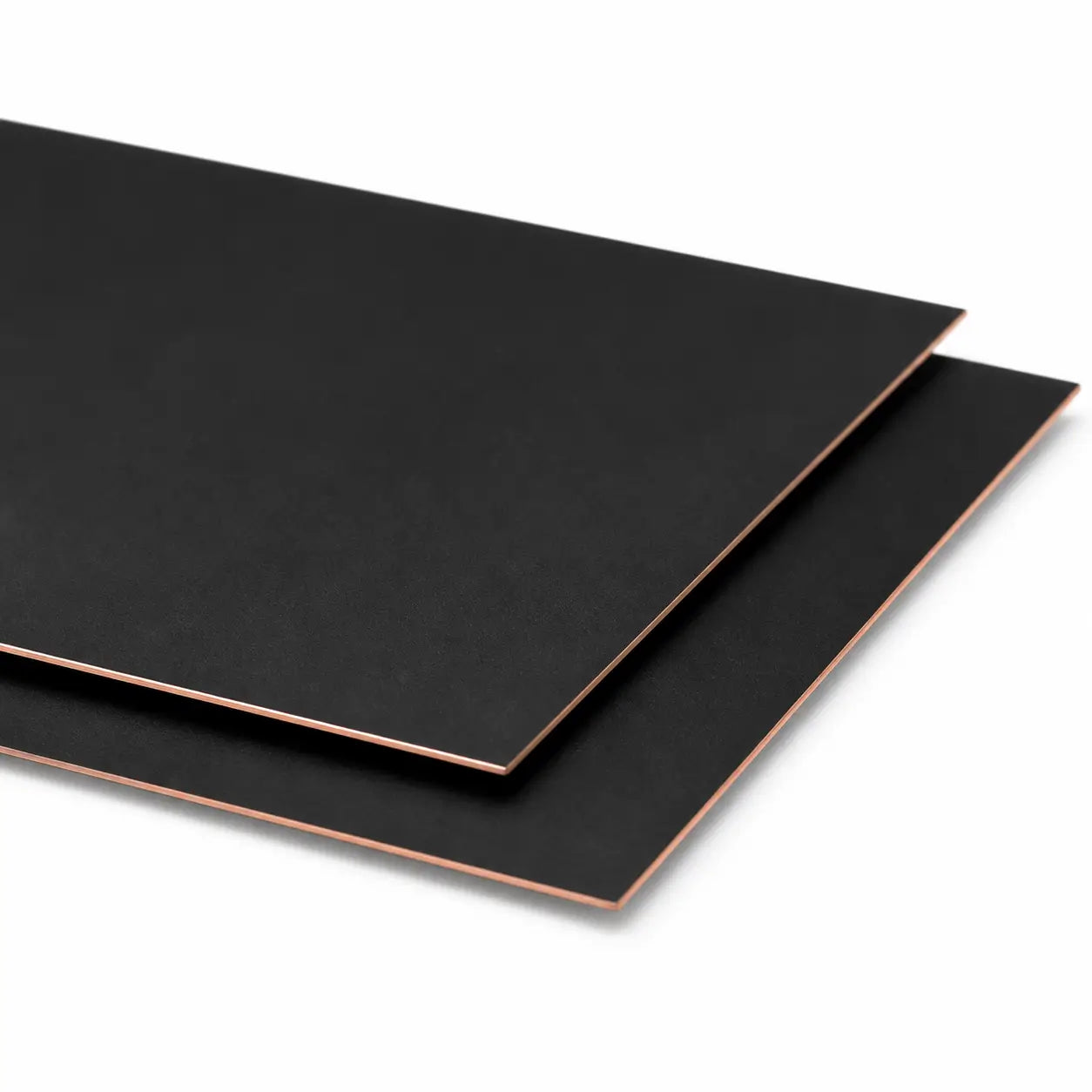

Graphite Anode Sheet (Copper Foil Substrate) for Battery Research, 5 pieces/pack

Graphite Anode Sheet (Copper Foil Substrate) for Battery Research, 5 pieces/pack

$69.00 USD
$69.00 USD
Sale Sold out
Shipping calculated at checkout.

SM0206-1

Size
  • Formal Quotes & POs
  • DDP to Most Destinations
  • Return Policy Available

Product Description

This graphite anode sheet is pre-coated on copper foil and designed for lithium-ion battery research and lab-scale testing.

Unlike raw materials, this ready-to-use electrode significantly simplifies your workflow, allowing you to directly assemble coin cells without complex slurry preparation and coating processes.

It is an ideal choice for researchers, engineers, and students who need fast and reliable testing materials.

Specifications

Sheet name  Graphite Anode Sheet with Copper Foil
Current Collector Thickness (um)  8
Current Collector Area Density (mg/cm2)  7.3
Area Density of the Coating (mg/cm2)  5.8
Active Material Specific Capacity (mAh/g)  340
Active Material in the Coating 95.7%
Recommended Packing Density (g/cc)  1.1~1.5
Area capacity (mAh/cm2)  1.89
Testing Room temperature 25℃, 0.05C/0.1 C, 0.005~2.0 V

Technical Data Sheet

Download TDS

Provided for product selection and research reference. This document is not an SDS.
