How to Evaluate Lithium-Ion Battery Separator Properties in the Lab

Two lithium-ion battery separators can have the same polymer name and the same nominal thickness, yet behave differently during wetting, assembly, rate testing, and heating. The reason is simple: a separator is not defined by thickness alone. Its pore network, air permeability, electrolyte affinity, mechanical anisotropy, and thermal response all matter.

This guide explains how to read those properties as a set. It is intended for laboratory comparison and purchasing decisions, not as a universal pass/fail specification for every cell chemistry.

What a battery separator actually does

In a conventional liquid-electrolyte lithium-ion cell, the separator provides an electronically insulating barrier between the positive and negative electrodes. Its interconnected pores hold liquid electrolyte, creating a path for ionic transport without allowing direct electronic contact between the electrodes.

This is why the separator is both a barrier and a transport medium. A dense film may provide physical separation but unacceptable ion resistance. A highly open membrane may wet readily but lose mechanical margin. The useful design lies in the balance.

If your first question is which separator family fits a particular experiment, start with our battery separator selection guide. The sections below address the next question: how to evaluate the material after choosing a candidate family.

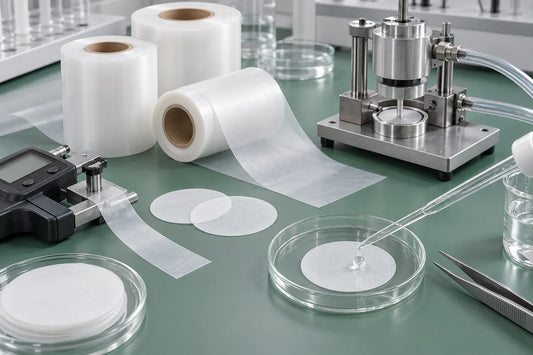

The seven properties that should be read together

1. Thickness and thickness uniformity

A thinner separator can reduce the ion-transport distance and leave more cell volume for active material. It can also be harder to handle and more sensitive to wrinkles, particles, burrs, local compression, and measurement pressure. “Thinner” is therefore not the same as “better.”

For lab comparison, report the measuring instrument, contact pressure or foot geometry when available, conditioning, and readings from several positions across the sample. A single center measurement can hide edge variation or coating nonuniformity. For coated separators, record the base-film thickness and total coated thickness separately when the supplier provides both.

2. Porosity, pore size, and tortuosity

These terms describe different features:

• Porosity is the fraction of the membrane volume occupied by voids.
• Pore size and distribution describe the dimensions and spread of pore openings or constrictions under a stated method.
• Tortuosity describes how indirect the transport pathways are through the thickness.

Higher porosity can increase electrolyte-filled volume, but excessive porosity can reduce mechanical strength. Two samples with similar porosity can still have different rate behavior if their tortuosity or constriction network differs. Research comparing controlled PE separators found normalized Gurley and ionic conductance more closely related to rate capability than thickness or porosity alone.

3. Air permeability and the Gurley value

A Gurley result reports how long a specified air volume takes to pass through a specified area under a specified pressure. Under the same test method, a lower time generally means air passes more readily. It does not directly equal lithium-ion conductivity.

Do not compare bare values unless the method, air volume, test area, pressure convention, sample thickness, temperature, and sample orientation are known. JIS, ASTM-style, and instrument-specific results are not automatically interchangeable. A Gurley number without a method is an incomplete specification.

4. Electrolyte wettability and uptake

Most polyolefin separators rely on liquid electrolyte inside their pores. Poor wetting can leave dry regions, extend soaking time, increase impedance, and add cell-to-cell variation. Contact angle, droplet-spreading time, capillary uptake, and mass-based electrolyte uptake each describe part of the behavior.

Use the electrolyte that will actually be tested. A membrane that wets well with one solvent blend can behave differently after the salt, solvent ratio, or additive package changes. Glass microfiber may absorb far more electrolyte than a thin polyolefin film; that can be convenient for early screening but can also make the test less representative of a lean-electrolyte cell.

5. Soaked ionic resistance

Air permeability is useful for process control, but a battery operates with electrolyte in the pores. Measure resistance after controlled wetting and equilibration when transport performance is central to the experiment. A blocking-electrode fixture and electrochemical impedance measurement can be used to compare samples, provided area, thickness, electrolyte, pressure, temperature, and soak time are controlled.

The MacMullin number is commonly used to express how much the porous separator increases resistance relative to the bulk electrolyte after geometry is accounted for. It should be treated as a measured transport descriptor, not inferred from porosity alone.

6. Tensile and puncture behavior

Stretched polyolefin films are often anisotropic. Machine-direction and transverse-direction tensile data can differ substantially, so a single “strength” value is not enough. Puncture resistance answers a different question: how the membrane responds to a localized load.

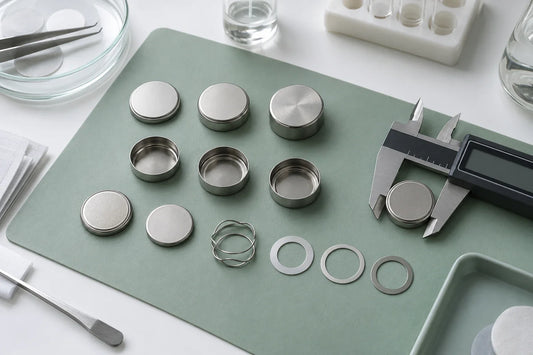

For small laboratory cells, separator damage can begin before cycling. Inspect cut edges, folds, wrinkles, and handling marks. Keep punch condition and disc diameter controlled. The CR2032 electrode and separator disc size guide explains why separator overhang and stack fit must be checked separately from membrane chemistry.

7. Thermal shrinkage, shutdown, and melt integrity

Thermal shrinkage should be reported with temperature, exposure time, sample dimensions, machine and transverse directions, and whether the film was free or restrained. A statement such as “low shrinkage” is not reproducible without those conditions.

In a PE-containing separator, heating can close pores and sharply reduce ionic transport. PP outer layers in a trilayer can provide structural support above the PE shutdown transition. That mechanism can add a safety function, but it does not make a separator or cell intrinsically safe. Continued heating, mechanical damage, contamination, poor cell design, or loss of melt integrity can still lead to failure. Safety claims require cell-level validation.

Why matching thickness does not mean matching performance

Our current product listings illustrate the point. The 2500 PP film and 2325 PP/PE/PP film are both listed at 25 µm, but their constructions and listed transport properties differ. The 2320 film has the same trilayer construction as 2325 at a different nominal thickness:

These are typical values as listed on the 2500, 2320, and 2325 product pages, not independent Flux test results or lot acceptance limits. Confirm the current technical data sheet and test conditions before using them for procurement or design decisions. Do not substitute a different manufacturer's data merely because a grade number matches.

The useful lesson is not that one grade is universally better. Even at the same nominal thickness, construction and listed air permeability can be different; laboratory wetting and resistance tests are still needed for the intended electrolyte.

A practical lab comparison plan

1. Define the cell question. Decide whether the separator is a controlled component or the variable being studied.
2. Record construction and lot. Include polymer, layer structure, coating, nominal thickness, supplier, lot, and storage history.
3. Measure dry physical properties. Map thickness, inspect surface and edges, and record air permeability using one method.
4. Test with the intended electrolyte. Compare wetting time, uptake, and soaked resistance under controlled conditions.
5. Evaluate mechanics and heat separately. Do not use a tensile result as a substitute for puncture behavior or a shutdown claim as a substitute for shrinkage data.
6. Build replicate cells. Keep electrode loading, disc geometry, electrolyte volume, stack pressure, assembly procedure, and rest time consistent.
7. Report the complete basis. A performance plot without separator grade, lot, dimensions, wetting procedure, and cell count is difficult to reproduce.

Matching Flux Battery Hub separator options to the question

The product choice should follow the measurement objective. Current options include:

• Wet-process PE separator film in listed 7, 9, 12, 14, 16, and 20 µm options for within-family thickness comparisons. The 14 µm listing does not currently include a full technical-property table; request that data before quantitative comparisons.
• 2500-type PP separator film for monolayer polyolefin experiments.
• 2320 PP/PE/PP trilayer separator (20 µm) and 2325 PP/PE/PP trilayer separator (25 µm) for a within-family thickness comparison; compare either with the PP monolayer only when layer architecture is the variable.
• Ceramic- and PVDF-coated PE separator, listed as a 12 µm PE base with 2 µm ceramic and 2 µm PVDF on one side (about 16 µm total), when coating or wetting is part of the study. Its listed air-permeability unit is seconds per 100 mL; do not compare that number directly with the JIS Gurley values above.
• GF/A glass microfiber discs, listed at 260 µm nominal thickness, for selected electrolyte-wetted laboratory studies. The product page does not provide an electrolyte-uptake value; measure it with your intended electrolyte rather than assuming a number.

Check the exact variant, dimensions, and listed specifications before ordering. Product-page values are supplier information unless explicitly identified as Flux test data. For controlled comparisons, keep material from the same lot and document any drying or handling procedure.

Common questions

Is a thinner lithium-ion battery separator always better?

No. Lower thickness can reduce transport distance and inactive volume, but handling, puncture resistance, dimensional variation, and defect sensitivity still need to meet the cell design.

Does higher porosity always lower cell resistance?

No. Porosity is only the void fraction. Pore connectivity, tortuosity, wetting, constrictions, thickness, and compression also affect ionic resistance.

Is a lower Gurley value always better?

It means faster air passage only under a comparable method. It does not by itself prove better electrolyte wetting, ionic conductance, mechanical strength, or cycling performance.

Does a shutdown separator prevent thermal runaway?

Shutdown can interrupt ionic transport under certain heating conditions, but it is one element of a larger safety design. Cell-level validation remains necessary.

For a useful separator inquiry, send the cell chemistry and format, electrolyte system, required thickness and dimensions, whether rolls or discs are needed, and the quantity through the Flux Battery Hub contact page. Those details allow a better shortlist than asking for a “general lithium-ion separator.”

Technical references and scope

This article is an educational laboratory guide. It does not define a universal separator acceptance specification or certify compatibility with a particular cell. Verify the exact supplier data sheet and validate the finished cell under the intended operating and abuse conditions.

• Arora and Zhang, Battery Separators, Chemical Reviews 104 (2004), 4419-4462.
• Deimede and Elmasides, A Review on Lithium-Ion Battery Separators towards Enhanced Safety Performances and Modelling Approaches.
• Lee et al., In-depth correlation of separator pore structure and electrochemical performance in lithium-ion batteries.
• Asahi Kasei separator overview for current wet-process, dry-process, single-layer, multilayer, and coated separator context.
